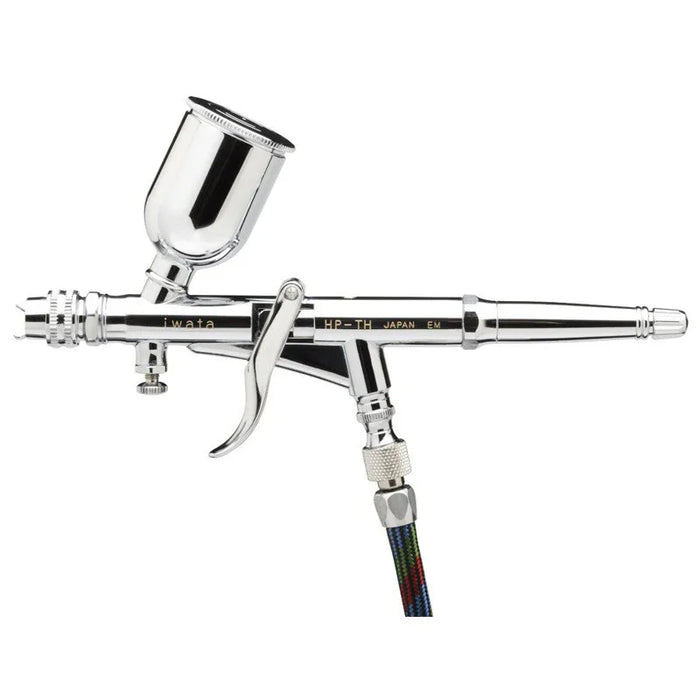

Iwata gravity AIR BRUSH HI-LINE MICRO CONTROL 0.5MM H5200
Iwata gravity AIR BRUSH HI-LINE MICRO CONTROL 0.5MM H5200
Offering total control of specialized, spray patterns, Iwata Hi-Line HP-TH Gravity Feed Dual Action Trigger Airbrush boasts unique spray capabilities and features. Its micro air control (MAC) valve enables incremental control of airflow for fine to large spray patterns. Round-pattern and fan-pattern air caps allow you to cover areas quickly and evenly and a variety of controlled stipple effects can be achieved using the MAC valve.
Hi-Line HP-TH includes a generous, removable 0.50 oz / 15 ml fluid cup with lid that is ideal for color mixing and easy cleanup. The preset handle feature sets the spray to a desired output for greater ease, control and less finger fatigue. Iwata needles are made with flexible spring steel that resists breakage and our needle packings are solvent resistant for longevity.
Series Hi-Line
Spray Scale Fine to Wide
Optimal Working Pressure Round Cap: 25 - 35 psi (0.17 - 0.24 Mpa)
Optimal Working Pressure Fan Cap: 30 - 40 psi (0.21- 0.28 Mpa)
Head System H5 - Needle, Nozzle
Nozzle Type Screw-On
Feed Style Gravity
Paint Capacity 0.50 oz (15 ml)
Action Dual
Handle Type Pre-Set
Net Weight (lbs) 0.35
Net Weight (kg) 0.16
Assembled Dimensions (in) 0.59 x 6.69 x 1.97
Assembled Dimensions (mm) 15 x 170 x 50
