Mongoose 24V To 12V Reducer Harness - Iso To Iso Plugs
by MONGOOSE
Original price
$61.00
-
Original price
$61.00
Original price
$61.00
$61.00
-
$61.00
Current price
$61.00
24 Volt DC to 12 Volt DC voltage reducer.
Made speciffically to run your 12v head unit in any 24v application.

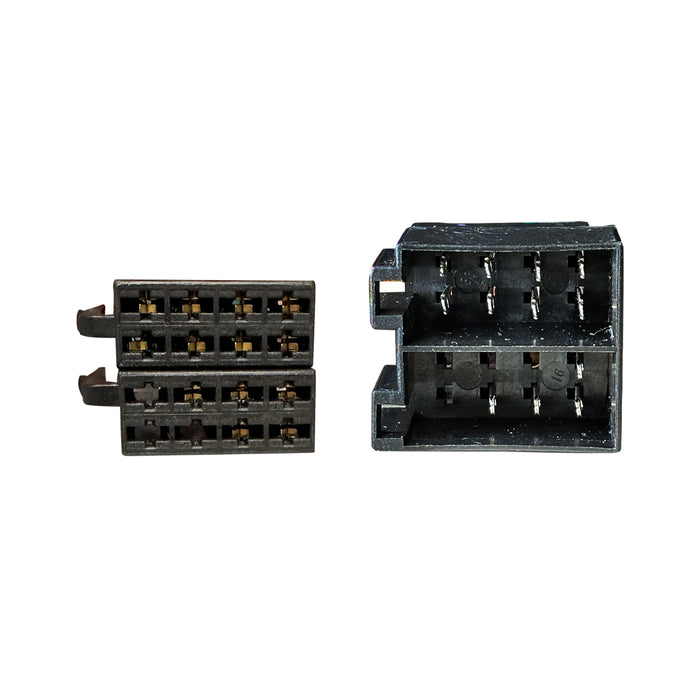

Plug & Play - Iso to Iso
Input DC voltage range: DC20~30V DC
Output voltage range: 12V~13.8V
Continuous power: 5 Amps
Peak power: 7 Amps
Module dimension, Incl plug - (LxWxH): 55 x 50 x 25mm

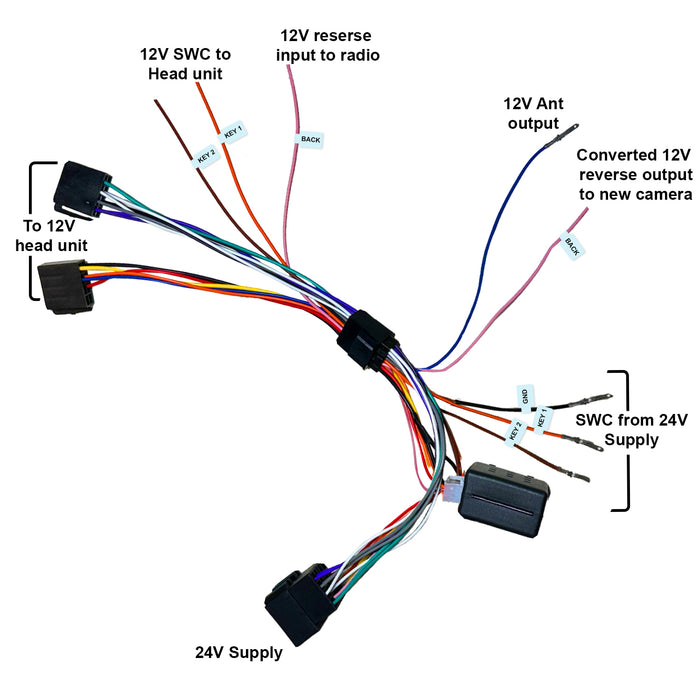

This module converts 5 x 24v inputs INTO 5 x 12v outputs :
- Constant power
- Ingition / ACC
- Ground
- Reverse Signal
- Illumination
NOTE**Relays may be required for any high current applications or when linking any additional items other than just a stand alone headunit.
Installer Note*Ensure 12v Constant and Acc wires are the correct way round, should your radio's harness have quick link swap plugs.
Made speciffically to run your 12v head unit in any 24v application.
Plug & Play - Iso to Iso
Input DC voltage range: DC20~30V DC
Output voltage range: 12V~13.8V
Continuous power: 5 Amps
Peak power: 7 Amps
Module dimension, Incl plug - (LxWxH): 55 x 50 x 25mm
This module converts 5 x 24v inputs INTO 5 x 12v outputs :
- Constant power
- Ingition / ACC
- Ground
- Reverse Signal
- Illumination
NOTE**Relays may be required for any high current applications or when linking any additional items other than just a stand alone headunit.
Installer Note*Ensure 12v Constant and Acc wires are the correct way round, should your radio's harness have quick link swap plugs.
SKU QH2412
